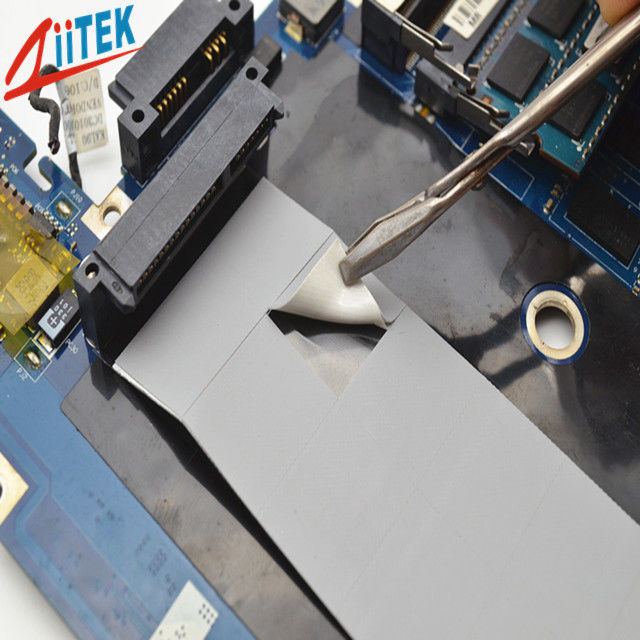

Custom High Temperature Thermal Conductive Insulator Material Silicone Pad For Audio And Video Components
Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.
The TS100-16-01 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.
Features:
> soft surface and good thermal conductivity
> Excellent dielectric strength
> High voltage insulation, lowthermal resistance
> Tear-resistant, puncture-
> resistant
Applications:
> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers
> Set top boxes
> Audio and video components
> IT infrastructure
| Typical Properties of TIS®100-16-01 Series |
| Property |
Value |
Test Method |
| Color |
Gray |
Visual |
| Construction &Compostion |
Ceramic filled silicone elastomer /Fiberglass |
****** |
| Thickness range |
0.006inch (0.15mm) |
0.008~0.009inch (0.20~0.23mm) |
0.010~0.018inch (0.25~0.45mm) |
ASTM D374 |
| Tensile Strength(MPa) |
30 |
ASTM D412 |
| Density |
2.3 g/cc |
ASTM D297 |
| Continuos Use Temp |
-60 to 180℃ |
****** |
| Breakdown Voltage(V/mm) |
3000 |
4000 |
5000 |
ASTM D149 |
| Dielectric Constant @ 1MHz |
5.5 |
ASTM D150 |
| Volume Resistivity |
4.0X1012 Ohm-meter |
ASTM D257 |
| Fire rating |
94 V0 |
UL(E331100) |
| Thermal conductivity |
1.6W/m-K |
ASTM D5470 |
Product Specification
Standard Thicknesses
0.006inch~0.018 (0.15~0.45mm)
Standard Sizes
12" x 160"(304mm x 48.76M)

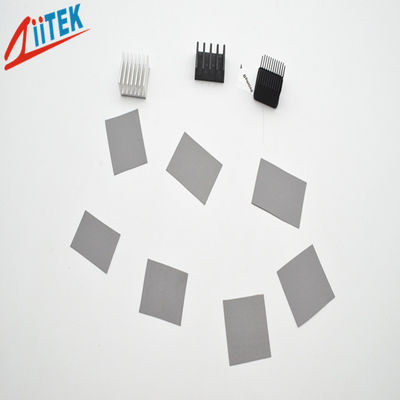

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.
Packaging Details & Lead time
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
