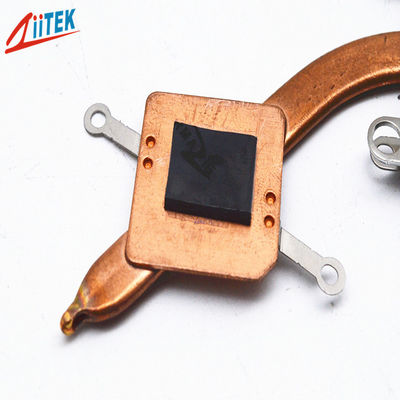

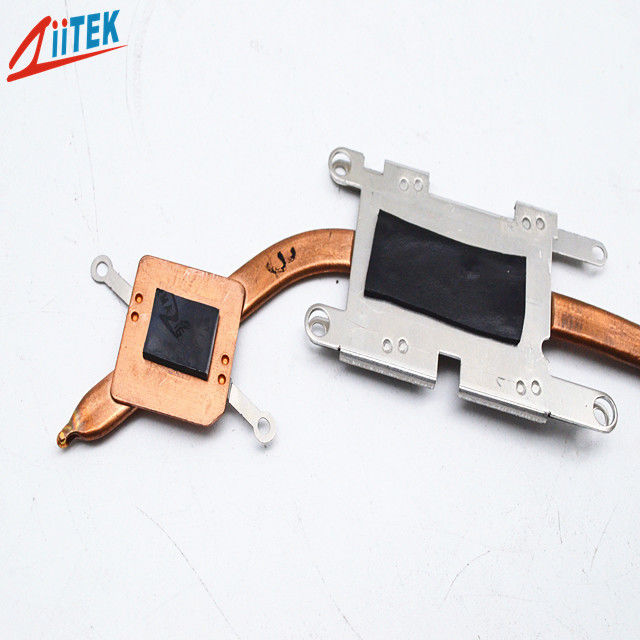

Name: Thermal Pad 1.5w/mk 0.25mm-5.0mm Thickness Thermal Silicone Conductive Pads for Automotive engine control units
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-01F
Price: 4.10 USD
Availability: InStock

Αρχική Σελίδα Προϊόντα θερμικό μαξιλάρι σιλικόνης

Thermal Pad 1.5w/mk 0.25mm-5.0mm Thickness Thermal Silicone Conductive Pads for Automotive engine control units

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Ziitek
Πιστοποίηση:	UL & RoHS
Αριθμό μοντέλου:	TIF100-01F

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1000pcs
Τιμή:	0.1-10 USD/PCS
Συσκευασία λεπτομέρειες:	241312 εκατοστά χαρτοκιβώτια
Χρόνος παράδοσης:	3-5 εργάσιμες ημέρες
Όροι πληρωμής:	T/t
Δυνατότητα προσφοράς:	1000000 pcs/μήνα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Όνομα προϊόντων:	Θερμικό μαξιλάρι 1,5W/MK 0,25mm-5,0mm Ποδηλατικά μαξιλάρια θερμικής σιλικόνης για μονάδες ελέγχου κι	Θερμική αγωγιμότητα:	1,5W/m-K
Φάσμα πάχους:	0.010 "(0.25mm) ~ 0.200" (5.0mm)	Χρώμα:	Μαύρος
Διηλεκτρική σταθερά:	4.0mHz	Τάση διηλεκτρικής κατάρρευσης:	> 5500 VAC
Βαθμολογία πυρκαγιάς:	94 V0	Λέξεις -κλειδιά:	Θερμική σιλικόνη αγώγιμα μαξιλάρια
Εφαρμογή:	Μονάδες ελέγχου αυτοκίνητων μηχανών

Thermal Pad 1.5w/mk 0.25mm-5.0mm Thickness Thermal Silicone Conductive Pads for Automotive engine control units

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

The TIF^®100-01F Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features

> Good thermal conductive: 1.5W/mK

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications

> LED TV / LED Lit Lamps
> Automotive engine control units
> SAD-DC Power Adapters
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Micro heat pipe thermal solutions
> Memory Modules

> Routers

> Telecommunication hardware

> Mainboard/mother board

> CPU
> Display card
> Mainboard/mother board
> Notebook

Typical Properties of TIF^®100-01F Series
Property	Value	Test method
Color	Black	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Thickness range	0.010"(0.25mm)~0.200"(5.0mm)	ASTM D374
Specific Gravity	2.3 g/cc	ASTM D792
Hardness	60 Shore 00	ASTM 2240
Operating Temp	-45 ~ 120℃	******
Dielectric Breakdown Voltage	≥5500 VAC	ASTM D149
Dielectric Constant @1MHz	4.0 MHz	ASTM D150
Volume Resistivity	≥2.0X10¹²Ohm-cm	ASTM D257
Fire rating	94 V0	UL E331100
Thermal conductivity	1.5W/m-K	ASTM D5470

Product Thicknesses: 0.010"(0.25mm)~0.200"(5.0mm)

Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection.The storage condition is low temperature anddry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Thermal Pad 1.5w/mk 0.25mm-5.0mm Thickness Thermal Silicone Conductive Pads for Automotive engine control units 0

Advantage

Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.
