Τόπος καταγωγής: | ΚΙΝΑ |
Μάρκα: | Ziitek |
Πιστοποίηση: | UL & RoHS |
Αριθμό μοντέλου: | TIF100-02U |
Ποσότητα παραγγελίας min: | 1000pcs |
---|---|
Τιμή: | 0.1-10 USD/PCS |
Συσκευασία λεπτομέρειες: | 24*13*12 εκατοστά χαρτοκιβώτια |
Χρόνος παράδοσης: | 3-5 εργάσιμες ημέρες |
Όροι πληρωμής: | T/t |
Δυνατότητα προσφοράς: | 1000000 pcs/μήνα |
Όνομα προϊόντων: | Θερμικό μαξιλάρι σιλικόνης γκρι για ψύξη ηλεκτρονικών ειδών | Λέξεις -κλειδιά: | θερμικό μαξιλάρι σιλικόνης |
---|---|---|---|
Φάσμα πάχους: | 0.020 "~ 0.200" (0.5mm ~ 5.0mm) | Χρώμα: | Γκρί |
Διηλεκτρική σταθερά: | 3,5 MHz | Θερμική αγωγιμότητα: | 1,5W/m-K |
Τάση διηλεκτρικής κατάρρευσης: | > 5500 VAC | Βαθμολογία πυρκαγιάς: | 94 V0 |
Εφαρμογή: | Ηλεκτρονική ψύξη |

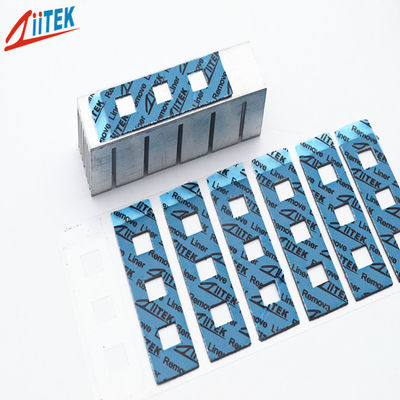

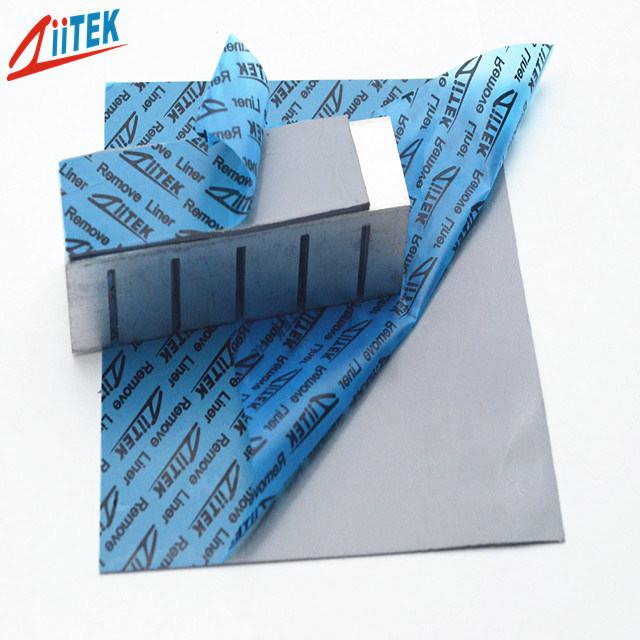

Gray Laptop Silicone Thermal Pad For Electronics Cooling
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
The TIF®100-02U Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
> Moldability for complex parts
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
Typical Properties of TIF®100-02U Series | |||
Property | Value | Test method | |
Color | Gray | ****** | |
Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
Thickness range | ≤ 0.50mm | 0.75mm~5.0mm | ASTM D374 |
Specific Gravity | 2.2g/cc | ASTM D297 | |
Hardness | 35 Shore 00 | 27 Shore 00 | ASTM 2240 |
Continuos Use Temp | -45 to 200℃ | ****** | |
Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
Dielectric Constant | 3.5 MHz | ASTM D150 | |
Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
Flame rating | 94 V0 | UL E331100 | |
Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q:How can we get detailed price list?
A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
