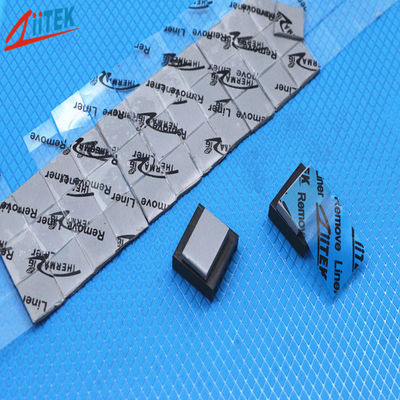

1.5W 0.5~5.0mm Thick Thermal Pad Insulator Insulation Materials Elements Thermal Conductive Pad For LED CPU GPU MOS

1.5W 0.5~5.0mm Thick Thermal Pad Insulator Insulation Materials Elements Thermal Conductive Pad For LED CPU GPU MOS

Λεπτομέρειες:
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: Ziitek
Πιστοποίηση: UL & RoHS
Αριθμό μοντέλου: TIF100-02S
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1000pcs
Τιμή: 0.1-10 USD/PCS
Συσκευασία λεπτομέρειες: 24*13*12 εκατοστά χαρτοκιβώτια
Χρόνος παράδοσης: 3-5 εργάσιμες ημέρες
Όροι πληρωμής: T/t
Δυνατότητα προσφοράς: 1000000 pcs/μήνα
Επικοινωνία
Λεπτομερής Περιγραφή Προϊόντος
Όνομα προϊόντων: 1,5W 0,5 ~ 5,0mm Θερμικό μόνωμα μόνωσης Pad Materaly Στοιχεία θερμικού αγώγιμου μαξιλάρι για LED CPU Λέξεις -κλειδιά: Θερμικό μαξιλάρι
Φάσμα πάχους: 0.020 "~ 0.200" (0.5mm ~ 5.0mm) Βαθμολογία πυρκαγιάς: 94 V0
Χρώμα: Γκρί Διηλεκτρική σταθερά: 4.5 MHz
Θερμική αγωγιμότητα: 1,5W/m-K Τάση διηλεκτρικής κατάρρευσης: > 5500 VAC
Εφαρμογή: LED CPU GPU MOS

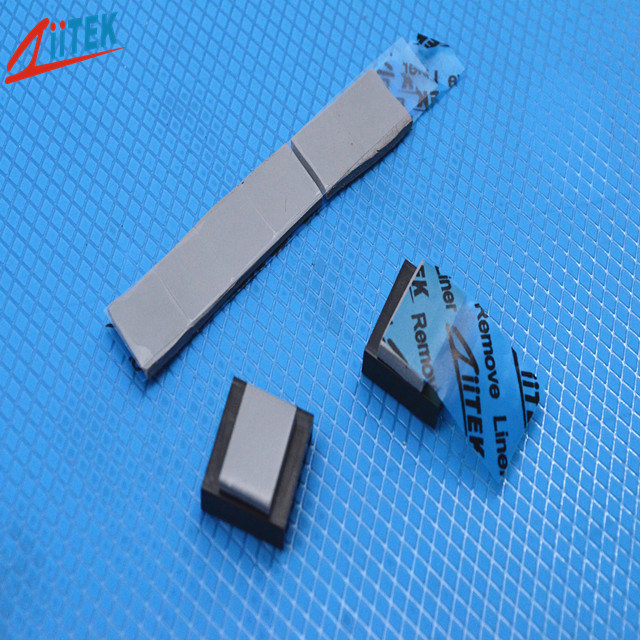

1.5W 0.5~5.0mm Thick Thermal Pad Insulator Insulation Materials Elements Thermal Conductive Pad For LED CPU GPU MOS



Company Profile



With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.



Ziitek TIF®100-02S Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.



Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Easy release construction
> EElectrically isolating
> EHigh durability

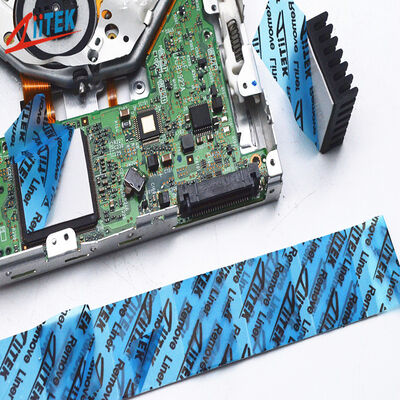

Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> Display card
> Mainboard/mother board
> Notebook

> Power supply
> Heat pipe thermal solutions
> Memory Modules



Typical Properties of TIF®100-02S Series
Property Value Test method
Color Gray ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 45 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outdassing 0.35% ASYM E595
Thermal conductivity 1.5 W/m-K ASTM D5470


Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

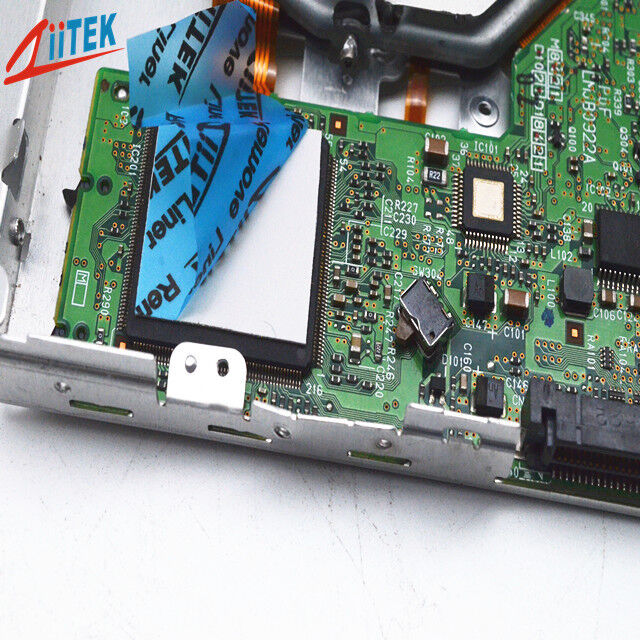

1.5W 0.5~5.0mm Thick Thermal Pad Insulator Insulation Materials Elements Thermal Conductive Pad For LED CPU GPU MOS 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.



Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
