Τόπος καταγωγής: | ΚΙΝΑ |
Μάρκα: | Ziitek |
Πιστοποίηση: | UL & RoHS |
Αριθμό μοντέλου: | Σειρά TIF100-05S |
Ποσότητα παραγγελίας min: | 1000pcs |
---|---|
Τιμή: | 0.1-10 USD/PCS |
Συσκευασία λεπτομέρειες: | 24*13*12 εκατοστά χαρτοκιβώτια |
Χρόνος παράδοσης: | 3-5 εργάσιμες ημέρες |
Όροι πληρωμής: | T/t |
Δυνατότητα προσφοράς: | 1000000 pcs/μήνα |
Όνομα προϊόντων: | Υψηλής ποιότητας εξαιρετικά μαλακό υψηλό αγώγιμο θερμικό σιλικόνη μαξιλάρι ψύξης χάσματος για το στο | Εφαρμογή: | Στοιχείο μόνωσης Premium CPU |
---|---|---|---|
Δείγμα: | ΔΩΡΕΑΝ | Χρώμα: | Μπλε |
Φάσμα πάχους: | 0.020 "~ 0.200" (0.5mm ~ 5.0mm) | Τάση διηλεκτρικής κατάρρευσης: | > 5500 VAC |
Βαθμολογία πυρκαγιάς: | 94 V0 | Διηλεκτρική σταθερά: | 4.5MHz |
Λέξεις -κλειδιά: | Θερμικό χάσμα | Θερμική αγωγιμότητα: | 1,5W/m-K |

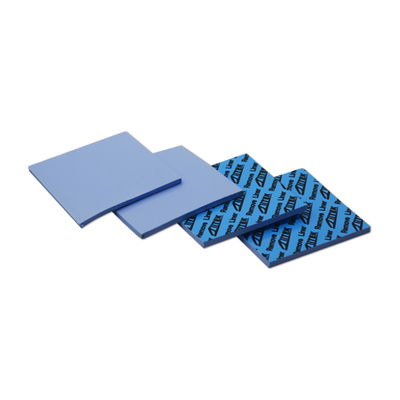

High Quality Ultra Soft High Conductive Thermal Silicone Pad Cooling Gap Filler For CPU Premium Insulation Element
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
Ziitek TIF®100-05S Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF100-05S is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
Typical Properties of TIF®100-05S Series | |||
Property | Value | Test method | |
Color | Blue | ****** | |
Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 | |
Specific Gravity | 2.3g/cc | ASTM D297 | |
Hardness | 45 Shore 00 | ASTM 2240 | |
Continuos Use Temp | -45 to 200℃ | ****** | |
Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
Dielectric Constant | 4.5 MHz | ASTM D150 | |
Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
Flame rating | 94 V0 | UL E331100 | |
Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
Product Specification
Product Thicknesses: 0.010-inch to 0.200-inch (0.25mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
