Τόπος καταγωγής: | ΚΙΝΑ |
Μάρκα: | Ziitek |
Πιστοποίηση: | UL & RoHS |
Αριθμό μοντέλου: | Σειρά TIF100-07E |
Ποσότητα παραγγελίας min: | 1000pcs |
---|---|
Τιμή: | 0.1-10 USD/PCS |
Συσκευασία λεπτομέρειες: | 24*13*12 εκατοστά χαρτοκιβώτια |
Χρόνος παράδοσης: | 3-5 εργάσιμες ημέρες |
Όροι πληρωμής: | T/t |
Δυνατότητα προσφοράς: | 1000000 pcs/μήνα |
Όνομα προϊόντων: | Υλικά θερμικής διαχείρισης Premium μαλακά θερμικά αγώγιμα επιθέματα πλήρωσης διακένου για εύκαμπτη λ | Διηλεκτρική σταθερά: | 40,7MHz |
---|---|---|---|
Δείγμα: | ΔΩΡΕΑΝ | Θερμική αγωγιμότητα: | 1,5W/m-K |
Φάσμα πάχους: | 0.020 "~ 0.200" (0.5mm ~ 5.0mm) | Λέξεις -κλειδιά: | Υλικά Θερμικής Διαχείρισης |
Χρώμα: | πράσινος | Βαθμολογία πυρκαγιάς: | 94 V0 |
Τάση διηλεκτρικής κατάρρευσης: | > 5500 VAC | Εφαρμογή: | Ημιαγωγός, LED Flesible Strip Bar LED |
High Conductive Insulation Thermal Silicone Pad Cooling Gap Filler For Semiconductor, Medical Equipment, Mask Aligner
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

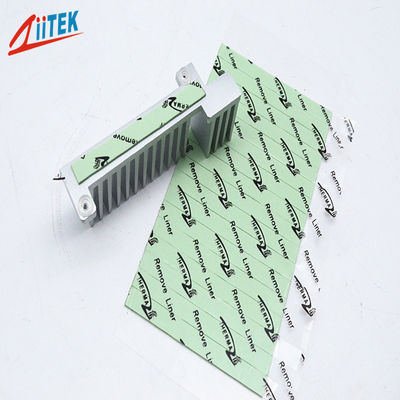

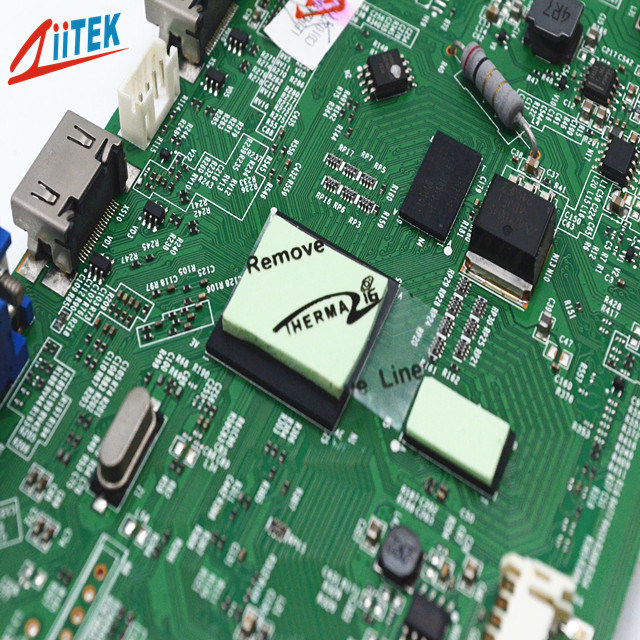

Ziitek TIF®100-07E Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
Typical Properties of TIF®100-07E Series | |||
Property | Value | Test method | |
Color | Green | ****** | |
Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 | |
Specific Gravity | 2.3g/cc | ASTM D297 | |
Hardness | 35 Shore 00 | ASTM 2240 | |
Continuos Use Temp | -45 to 200℃ | ****** | |
Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
Dielectric Constant | 4.7 MHz | ASTM D150 | |
Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
Flame rating | 94 V0 | UL E331100 | |
Outgassing | 0.35% | ASTM E595 | |
Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
