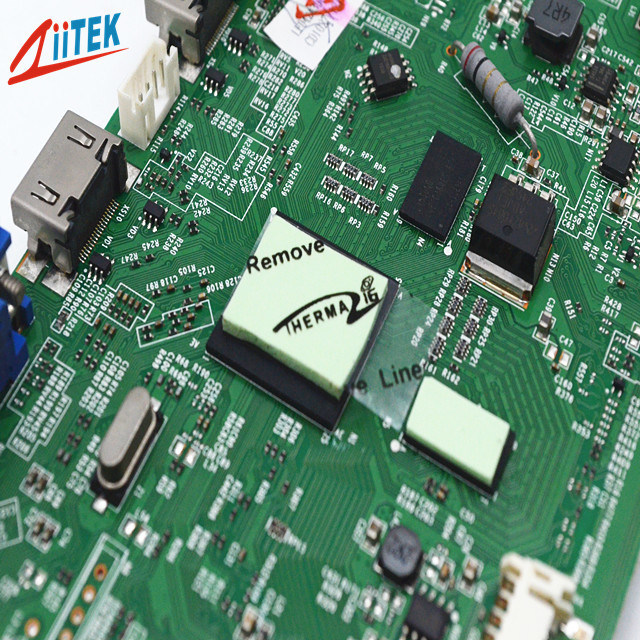

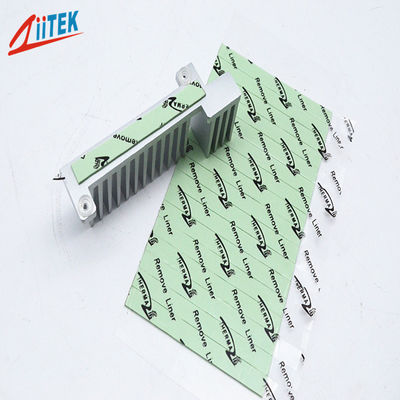

Name: UL-94 V0 Flame Rating Conductive Pad For GPU Cooling High Quality Thermal Conductive Pad For AI Processors
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-50-56E
Price: 4.10 USD
Availability: InStock

Αρχική Σελίδα Προϊόντα θερμικό μαξιλάρι σιλικόνης

UL-94 V0 Flame Rating Conductive Pad For GPU Cooling High Quality Thermal Conductive Pad For AI Processors

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Ziitek
Πιστοποίηση:	UL & RoHS
Αριθμό μοντέλου:	TIF100-50-56E

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1000 τεμ
Τιμή:	0.1-10 USD/PCS
Συσκευασία λεπτομέρειες:	Κουτιά 242312cm
Χρόνος παράδοσης:	3-5 εργάσιμες
Όροι πληρωμής:	T/T
Δυνατότητα προσφοράς:	1000000 pcs/μήνα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Όνομα προϊόντων:	UL-94 V0 Flame Rating Conductive Pad for GPU Cooling High Quality Thermal Conductive Pad for AI Proc	Εύρος πάχους:	0,25-5,0mmT
Λέξεις-κλειδιά:	Θερμικό αγώγιμο μαξιλάρι	Χρώμα:	Πράσινος
Τάση διάσπασης (V/mm)):	≥5500	Κατασκευή:	Ελαστομερές σιλικόνης γεμάτης κεραμικά
Βαθμολογία πυρκαγιάς:	UL94 V-0	Θερμική αγωγιμότητα:	5.0W/m-Κ
Εφαρμογή:	Επεξεργαστές GPU Cooling και AI	Η διηλεκτρική σταθερά @ 1MHz:	8.5

UL-94 V0 Flame Rating Conductive Pad For GPU Cooling High Quality Thermal Conductive Pad For AI Processors

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber, Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

The TIF^®100-50-56E Series is a well-balanced,general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness . This balanced design provides both good surface conformity and excellent ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between costand performance.

Features:

> Good thermal conductivity: 5.0W/mK

> Ultra soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

> RoHS compliant
> UL recognized

Applications

> AI Servers, Inverters, Telecom Devices

> Power tools
> Network communication products
> Electric vehicle batteries Computer CPU/GPU Cooling
> New energy vehicle power systems

> Display card
> Mainboard/mother board
> Notebook

> Power supply
> Heat pipe thermal solutions

> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light

Typical Properties of TIF^®100-50-56E Series
Property	Value		Test method
Color	Green		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.3		ASTM D792
Thickness Range(inch/mm)	0.010~0.020 (0.25~0.5)	0.030~0.200 (0.75~5.0)	ASTM D374
Hardness (Shore OO)	65	35	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	8.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹⁴ Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	5.0 W/m-K		ASTM D5470
	5.0 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010"(0.25 mm)-0.200" (5.00 mm) with increments of 0.01 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).

Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.

For other thicknesses or more information, please contact us.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

UL-94 V0 Flame Rating Conductive Pad For GPU Cooling High Quality Thermal Conductive Pad For AI Processors 0
