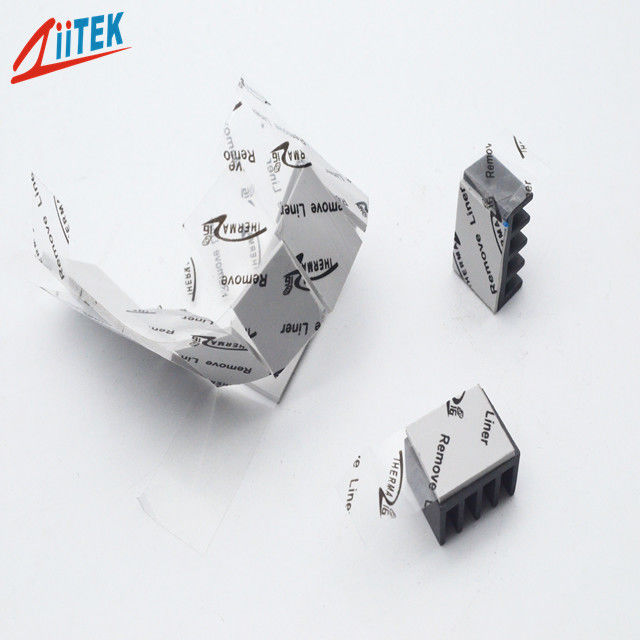

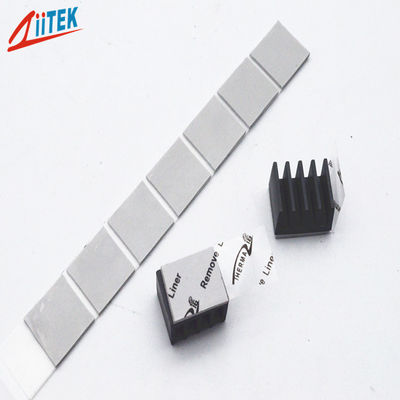

Name: Thermal Silicone Pad 7.5W High Conductivity Heat Dissipation Sheet For AI Server
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF700PES
Price: 4.10 USD
Availability: InStock

Αρχική Σελίδα Προϊόντα θερμικό μαξιλάρι σιλικόνης

Thermal Silicone Pad 7.5W High Conductivity Heat Dissipation Sheet For AI Server

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Ziitek
Πιστοποίηση:	UL & RoHS
Αριθμό μοντέλου:	TIF700PES

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1000 τεμ
Τιμή:	0.1-10 USD/PCS
Συσκευασία λεπτομέρειες:	Κουτιά 242312cm
Χρόνος παράδοσης:	3-5 εργάσιμες
Όροι πληρωμής:	T/T
Δυνατότητα προσφοράς:	1000000 pcs/μήνα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Όνομα προϊόντων:	Θερμικό επίθεμα σιλικόνης 7,5 W Φύλλο απαγωγής θερμότητας υψηλής αγωγιμότητας για διακομιστή AI	Κατασκευή:	Ελαστομερές σιλικόνης γεμάτης κεραμικά
Εύρος πάχους:	0,5-5,0mmT	Λέξεις-κλειδιά:	Θερμικό μαξιλάρι
Η διηλεκτρική σταθερά @ 1MHz:	7.6	Χρώμα:	Γκρί
Τάση διάσπασης (V/mm)):	≥5500	Βαθμολογία πυρκαγιάς:	UL94 V-0
Εφαρμογή:	Διακομιστές AI Επεξεργαστές AI	Θερμική αγωγιμότητα:	7.5W/m-K

Thermal Silicone Pad 7.5W High Conductivity Heat Dissipation Sheet For AI Server

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

The TIF^®700PES Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines excellent thermal conductivity with a near-fluid ultimate softness, ensuring perfect filling of the contact interface even under ultra-low mounting pressure,completely eliminating air thermal resistance,and providing superior thermal solutions and physical protection for the most precise and highest heat flux electronic components.

Features:

> High thermal conductivity: 7.5W/mK

> Extremely soft,low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> High insulation performance

Applications

> AI Servers

> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

Typical Properties of TIF^®700PES Series
Property	Value		Test method
Color	Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.4		ASTM D792
Thickness Range(inch/mm)	0.020~0.030 (0.50~0.5)	0.040~0.200 (1.0~5.0)	ASTM D374
Hardness (Shore OO)	60	10	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.2 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	7.5 W/m-K		ASTM D5470
	7.5 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.020"(0.5 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)

The TIF^® series is available in custom shapes and various forms.

For other thicknesses or more information, please contact us.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
