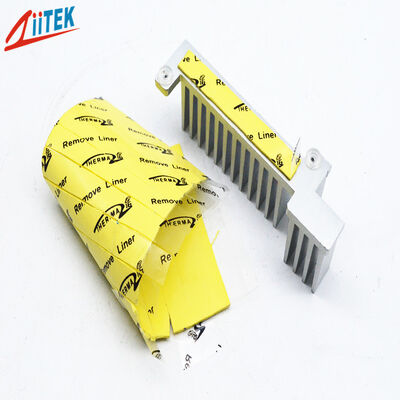

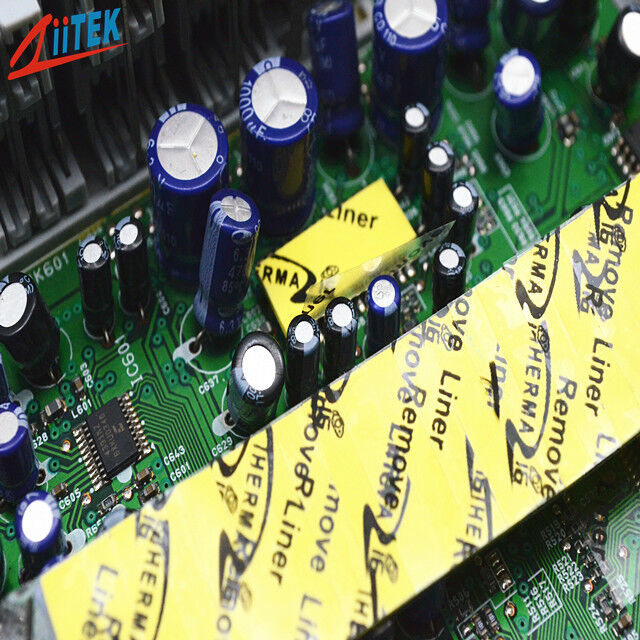

Good Softness And Fillability Thermally Conductive Gap Filler Pads For Automotive Electronics AI Processors
Products Description
TIF®200-15-27E Series is a compound thermal interface material that combines good thermal conductivity, reliable electrical insulation, and soft characteristics.This product not only provides excellent thermal conductivity but also ensures superior breakdown voltage strength, effectively preventing circuit short circuits. Its soft characteristic allows it to fully fill uneven interfaces, providing excellent cushioning protection for precision components while dissipating heat. This series is an ideal choice for applications requiring electrical isolation,such as power devices, new energy vehicles, and portable electronic devices.
Features:
> High insulation performance
> Good thermal conductivity
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Puncture-resistant, tear-resistant, and scratch-resistant performance
Applications:
> Electronic Components 5G,Aerospace, AI,
> AIoT, AR/VR/MR/XR, Automotive,Consumer Devices,
> Datacom,Electric Vehicle,Electronic Products,
> Energy Storage,Industrial, Lighting Equipment,
> Medical, Military, Netcom, Panel,
> Power Electronics,Robot,Servers,
> Smart Home,Telecom,etc.
> Industrial Control
> New Energy
| Typical Properties of TIF®200-15-27E Series |
| Property |
Value |
Test method |
| Color |
Light Yellow |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
2.0 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.020~0.200 / (0.50~5.0mm)
|
ASTM D374 |
| Hardness |
35 Shore 00 |
ASTM 2240 |
| Continuos Use Temp |
-40 to 200℃ |
*** |
| Breakdown Voltage(V/mm) |
≥8000 |
ASTM D149 |
| Dielectric Constant |
6.0 MHz |
ASTM D150 |
| Volume Resistivity |
＞1.0X1014 Ohm-meter |
ASTM D257 |
| Thermal Conductivity(W/m.K) |
1.5 |
ASTM D5470 |
| Fire rating |
V-0 |
UL 94 (E331100) |
Product Specifications
Standard Thickness: 0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"× 16" (406 mm×406 mm)
Component Codes:
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
