Name: High Thermal Conductive 2.8W Two Component Potting Silicone Adhesive For Industrial Control
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIG680-28AB
Price: 50.00 USD
Availability: InStock

Αρχική Σελίδα Προϊόντα Θερμική αγώγιμη κόλλα σιλικόνης

High Thermal Conductive 2.8W Two Component Potting Silicone Adhesive For Industrial Control

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Ziitek
Πιστοποίηση:	RoHS
Αριθμό μοντέλου:	TIG680-28AB

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	10 κιλά
Τιμή:	1-100USD/KG
Συσκευασία λεπτομέρειες:	1kg/can
Χρόνος παράδοσης:	3-8 εργάσιμες ημέρες
Όροι πληρωμής:	T/T
Δυνατότητα προσφοράς:	10000KG/Month

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Όνομα προϊόντων:	Υψηλή θερμική αγώγιμη κόλλα σιλικόνης δύο συστατικών 2,8 W για βιομηχανικό έλεγχο	Πυκνότητα:	2.95
Υλικό:	Κόλλα σιλικόνης	Χρώμα:	γκρί
Σκληρότητα:	25 (ακτή Α)	Εφαρμογή:	Βιομηχανικός έλεγχος, μετασχηματιστής, πηνίο
Θερμική αγωγιμότητα:	2,8W/mK	Λέξη-κλειδί:	Μείγμα γλάστρας

High Thermal Conductive 2.8W Two Component Potting Silicone Adhesive For Industrial Control

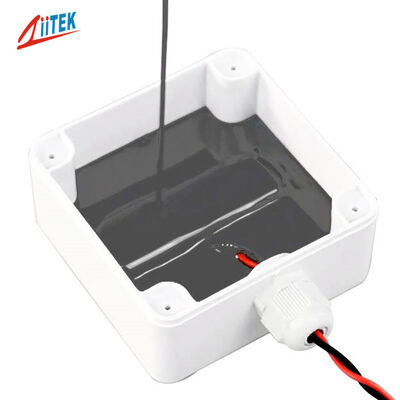

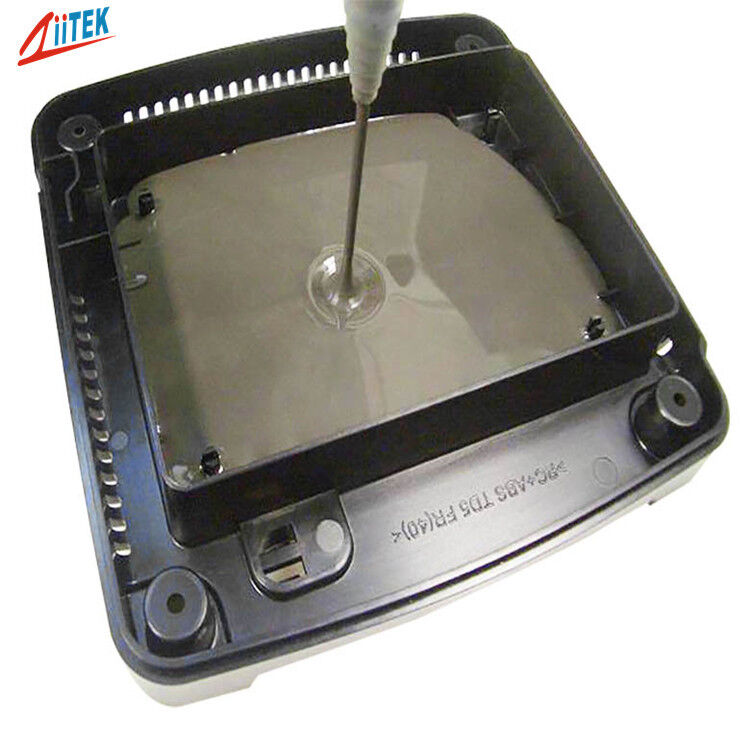

TIG^®680-28AB Series is a two-component high thermal conductivity silicone sealant with room temperature curing, long working time, and flame retardant properties. This product is particularly suitable for sealing capacitors and small electronic devices. Its excellent flexibility properties enable it to provide excellent cushioning protection for coating materials. The low viscosity characteristic enables the thermal conductive sealant to cover the surface more comprehensively, greatly improving the heat transfer efficiency of the heating element or the entire printed circuit board to the metal shell or heat dissipation plate,thereby improving the performance and service life of electronic components.

Feature

> Good thermal conductivity: 2.8W/mK
> Good insulation performance
> Good elasticity
> Lower shrinkage
> Low viscosity,easy gas emissions
> Good solvent resistance and waterproof performance
> Longer working hours
> Excellent high and low temperature resistance
> No odor release during the curing process

Application

> Industrial control,transfomer,coil, amplifier, high voltage package,relay, high current junction box,etc
> Heat sink assembly, thermal sensor potting,thermal conductive product potting
> Heat conduction between the battery cell and the cold tube
> LED and power drive potting

Typical Properties of TIG^®680-28AB Series
Material Properties (Before Curing)
Property	Numerical	Test Method
Color/Part A	White	Visual
Color/Part B	Gray	Visual
Part A Viscosity (mPa.s)	7000	GB/T 10247
Part B Viscosity (mPa.s)	8000	GB/T 10247
Mix Ratio	1:1	Ziitek Test Method
Shelf life	6 months(Unopened)	Ziitek Test Method
Cure Schedule
Pot Life @25℃	30~45 mins	Ziitek Test Method
Cure @70℃	20~30 mins	Ziitek Test Method
Cure Material Properties
Color	Gray	Visual
Hardness (Shore A)	25	ASTM D2240
Density (g/cm³)	2.95	ASTM D792
Recommended Operating temperature (℃)	-45 ~200	*****
Flame Rating	V-0	UL 94
Thermal Conductivity (W/mK)	2.8	ASTM D5470
Breakdown Voltage (V/mm)	≥8000	ASTM D149
Dielectric Constant @1MHz	6.0~8.0	ASTM D150
Volume Resistivity (Ohm·cm)	1.0x10¹³	ASTM D257
