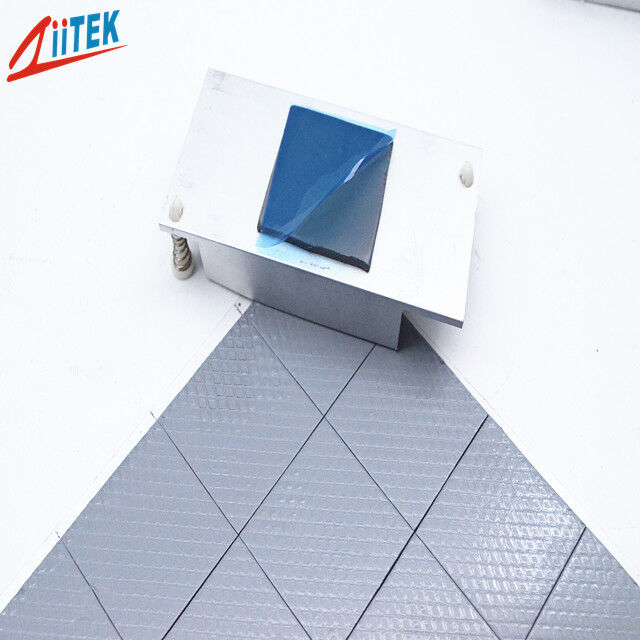

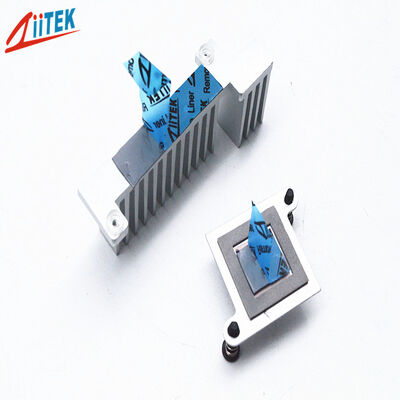

Thermal Gap Filler Designed To Provide Thermal Conductivity Of 2.0W/mK For Electronics Cooling Applications

Thermal Gap Filler Designed To Provide Thermal Conductivity Of 2.0W/mK For Electronics Cooling Applications

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: Ziitek
Πιστοποίηση: UL and RoHs
Αριθμό μοντέλου: TIF100-20-10E
Έγγραφο: TIF100-20-10E_Data Sheet.pdf
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1000 τεμ
Τιμή: 0.1-10 USD/PCS
Συσκευασία λεπτομέρειες: Κουτί 24*13*12cm
Χρόνος παράδοσης: 3-8 εργάσιμες ημέρες
Όροι πληρωμής: T/T
Δυνατότητα προσφοράς: 100000 τμχ/μήνα
Επικοινωνία
Λεπτομερής Περιγραφή Προϊόντος
Όνομα προϊόντων: Γέμισμα θερμικού κενού σχεδιασμένο να παρέχει θερμική αγωγιμότητα 2,0 W/mK για εφαρμογές ψύξης ηλεκτ θερμικός αγώγιμος: 2.0 W/mK
Σκληρότητα: 65/35 Shore 00 δείγμα: Δωρεάν δείγμα
Χρώμα: Γκρί Πάχος: 0.010 "(0.25mm) ~ 0.200" (5.0mm)
Πυκνότητα: 20,7 g/cm3 Λέξεις-κλειδιά: Θερμικό χάσμα
Κατασκευή: Κεραμικό ελαστομερές σιλικόνης Εφαρμογή: Εφαρμογή Ψύξης Ηλεκτρονικών

Thermal Gap Filler Designed To Provide Thermal Conductivity Of 2.0W/mK For Electronics Cooling Applications

Products description


The TIF®100-15-01F Series is a structurally supportive thermal pad designed to provide good heat dissipation while also ensuring structural support and durability. It can reliably fillinterfacegaps,transfer heat,and offer mechanical support for stacked components, resisting compressive deformation. This product is an ideal choice for applications that require a balance between heat dissipation,insulation,
and mechanical stability.


Features

> Good thermal conductivity
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance

Applications

> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures

Key attributes


Typical Properties of TIF®100-20-10E Series
Property Value Test method
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.7 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness (Shore 00) 65 35 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant @1MHz 5.0 ASTM D150
Volume Resistivity(Ohm-meter) >1.0X1012  ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity(W/m-K) 2.0 ASTM D5470
2.0 ISO22007



Product Specifications


Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16" (406 mm X406 mm).


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.



Thermal Gap Filler Designed To Provide Thermal Conductivity Of 2.0W/mK For Electronics Cooling Applications 0


Packaging Details & Lead time


The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized


Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
